multi-color engravable hdpe polymer sheet :

HDPE ColorCore is a versatile multi-color engravable high-density polyethylene sheet with multiple layers of contrasting colors. It is a superior homogeneous sheet, a product of a unique state-of-the-art continuous process, and manufactured to the highest standards in the industry. hdpe color core has a matte finish on both sides of the sheet. It is environmentally stabilized to withstand the harshest outdoor conditions. hdpe color core will not rust, delaminate or rot when exposed to UV, humidity or water. hdpe color core is made with high-impact-resistant polymer to handle more abuse than conventional sign materials. Its thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with hdpe color core. The polymer sheet never needs painting or refinishing, works like wood and it is easy to fabricate using common woodworking tools and techniques. The material is easy to engrave and machine, as the cap is approximately .050” thick. hdpe color core is upgradable to Xinxing with an advanced antimicrobial technology for protecting the product surface against stain and odor causing bacteria, algae and fungi.

Key Properties

High Impact Strength

UV Stabilized

Polyfusion Co-Extruded Cap

Will Not Warp, Rot or Delaminate

FDA & USDA Compliant

Limitations

High Coefficient of Thermal Linear Thermal Expansion

Low Heat Defection & Continuous Use Temp

Relatively Low Mechanical Properties

Standard Sheet Size

in: 48” x 96”

mm: 1219 mm x 2438 mm

Standard Gauges

in: 1/4” 1/2” 3/4”

mm: 6.4 mm 12.7 mm 19 mm

Thickness .250” (6.4 mm) to .750” (19 mm) Width & Length 48.000” (1219 mm) x 96.000” (2438 mm)

Blue / White / Blue

White / Blue / White

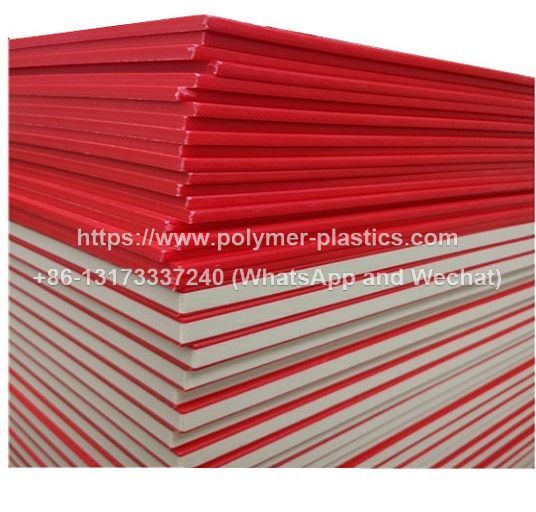

Red / White / Red

White / Red / White

Red / Black / Red

Black / Red / Black

Green / White / Green

White / Green / White

Green / Tan / Green

Tan / Green / Tan

Yellow / Black Yellow

Black / Yellow / Black

Brown / Tan / Brown

Tan / Brown / Tan

Brown / White / Brown

White / Brown / White

Black / White / Black

White / Black / White

Architectural Applications

Carnival Games

Children’s Furniture

Furniture

Marine Applications

Museums

Picnic Tables

Point-of-Purchase Displays

Signage and Wayfinding

Description

Value

Material Type    Semi-Crystalline Thermoplastic

Chemical Name    HDPE High Density Polyethylene

Trade Name   XINXING

Additives    Proprietary Additives

Color    Multiple Colors

Manufacturer    Xinxing

PHYSICAL

Property

Test

Unit of Measure

Value

Density    ASTM D792    g/cm³    0.955

ASTM D792    lb/in³    0.035

MECHANICAL

Property

Test

Unit of Measure

Value

Tensile Strength    ASTM D638    psi    4,100

Tensile Modulus    ASTM D638    psi    255,000

Tensile Elongation at Break    ASTM D638    %    600

Flexural Modulus    ASTM D790    psi    185,000

Compressive Strength    ASTM D695    psi    4,950

Hardness    ASTM D785    NA    Shore D68

IZOD Impact-Notched    ASTM D256    ft-lb/in    1.1

THERMAL

Property

Test

Unit of Measure

Value

Heat Deflection Temp    ASTM D648    °C at 264 psi    75

ASTM D648    °F at 264 psi    167

Max Continuous Operating Temp    °C    82

°F    180

Minimum Operating Temp    °C    -60

°F    -76

Flammability Rating    UL94    NA    HB

COMPLIANCE

Description

Value

FDA    Yes

USDA    Yes

NSF    No

3-A Dairy    No

Canadian Food Inspection Agency    No

USP Class VI    No

OTHER

Description

Value

ASTM Shape Spec    ASTM D4976

UV Resistant    Yes

Relative Cost    $$

Machinability    1
