uhmwpe guide track rail for conveyor :

uhmwpe guide track rail

uhmwpe track guide rail

uhmwpe guide track

uhmwpe track guide

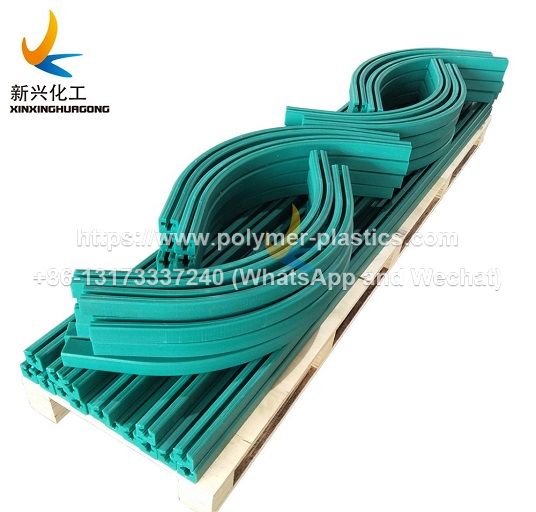

uhmwpe guide track rail for conveyor

Inquire Now Next Product

Description

Product Description

Guide rail was designed in response to demands from the packaging and material handling industries that require exceptional frictional and resistant properties. And it provides effective protection for expensive conveyor systems, especially in wet and corrosive environments.

We offer a wide variety of custom designed UHMW-PE chain guide that meet client specifications. Each one of them is made-to-order utilizing Xinxing’s top of the line fabrication equipments. Those guide rails provide high abrasion, low coefficient of friction, high impact of resistance, and excellent chemical resistance. Their unique characteristics help conveying systems operate with minimal wear and extended life.

Key properties UHMWPE sheet:

• Extremely high impact strength

• Excellent wear and abrasion resistance

• Optimal sliding properties

• Dimensional stability

• Energy absorption capacity at high loading rates

• Resistance against fatigue

• Water repellent

• Good chemical resistance

• electrical and dielectric properties

• Physiologically harmless

Technical parameters:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

Our Products Type:

PE 300,PE 500 ,PE 1000,PE 2000

UHMWPE 3million—-9million molecule weightHigh Density Polyethylene TICONA is also available

UHMWPE UHMWPE Plastic chain guide rail / uhmwpe corner track Color:Black,White,Blue,Red,Yellow,Green and other customer color

Our Products Range:

Track Guide Rail guide track rail Conveyor Chain track rail guide UHMW plastic Conveyor Chain Conveyor guard rail chain Plastic chain conveyor slide rail uhmwpe guide rail chain guide rail hdpe guide rail corner track

Applications:

1. Chain guides2. Wear curves 3. Bearing surface 4. Belt guides5. Textile Industry6. Chemical Industry7. Food Processing Industry and beverage light industry 8. Paper Industry9. Farm Implement10. Mining & Metals Processing Industries11. Transportation12.Sport and amusement industry13. Medicine Field

Size

2"W X 0.5"H X 120"L White

TYPE-T GUIDE

TYPE-TD DUPLEX GUIDE

TYPE-T TRIPLEX GUIDE

TYPE-CT MOUNTED GUIDE

TYPE-CT DUPLEX MOUNTED GUIDE

TYPE-CT TRIPLEX MOUNTED GUIDE

TYPE-TU GUIDE

TYPE-CTU GUIDE

TYPE-CTS GUIDE

TYPE-TS GUIDE

TYPE-U GUIDE

TYPE-CU GUIDE

TYPE-K GUIDE

TYPE-CK GUIDE

TYPE-CKG GUIDE

TYPE-CKG 14H GUIDE

TYPE-CKG 15V GUIDE

TYPE-ETA GUIDE

CHANNEL STYLE CHAIN GUIDE

RAISED TRACK STYLE CHAIN GUIDE

CHANNEL WITH RAISED TRACK STYLE CHAIN GUIDE

STEEL MOUNTING CHANNELS

T-HEAD BOLTS FOR MOUNTING CHANNELS

Color

green, white, black

other colors also available
