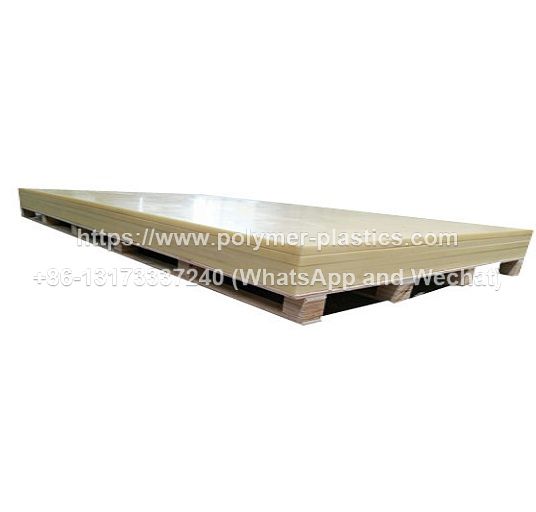

cast nylon sheet and cast PA sheet :

Nylon is a versatile thermoplastic that is strong & durable with good resistance to many chemicals, wear, and abrasions. Common uses included bushings, bearings, gears, sprockets, wheels, rollers and screws. Xinxing' Nylon Sheets come in natural and black colors as well a variety of thicknesses. Standard sheet size is 24" x 48" with custom cut option available.


cast nylon sheet and cast PA sheet

Description

Nylon Sheet, commonly known as Polyamide Sheet or PA Sheet (PA), are semi-crystalline polymers with very good mechanical properties, extreme toughness abd excellent sliding and wera properties. Nylon Sheet is tough and highly load resistant. Due to the pressureless manufacturing process Nylon Sheet is almost stress free


•210° F continuous use temperature
•Superior wear and abrasion resistance
•Easily machined and fabricated
•Outstanding chemical resistance to alkalies and oxidizing agents
•Good impact strength at low temperatures
•Low friction coefficient
•High toughness, strong and stiff
•High dimensional stability
•It can replace metal bearings and bushings
•Many times eliminates need for external lubrication
•FDA compliant grade available
•Glass-filled grades available


Application:

•Pistons and valves
•Manifolds
•Electrical components
•Wear pads and wear strips
•Sheaves and pulleys
•Feed and timing screws
•Rollers and wheels
•Food product forming dies
•Gears, sprockets, and star wheels
•Scraper blades
•Bushings and bearings
•Pump components


Industries:

•Food and dairy processing
•Material handling
•Fluid handling
•Electronics manufacturing
•Construction
•Paper manufacturing
•Automotive
•Textile production
•Mining



Size

Nylon 6 Sheet: 10mm to 100mm thick

premium grade Nylon 6 in full sheets and cut to size pieces in the following thicknesses:

10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 100mm


2440x1220mm, 8feet x 4feet, 96inch x 48inch

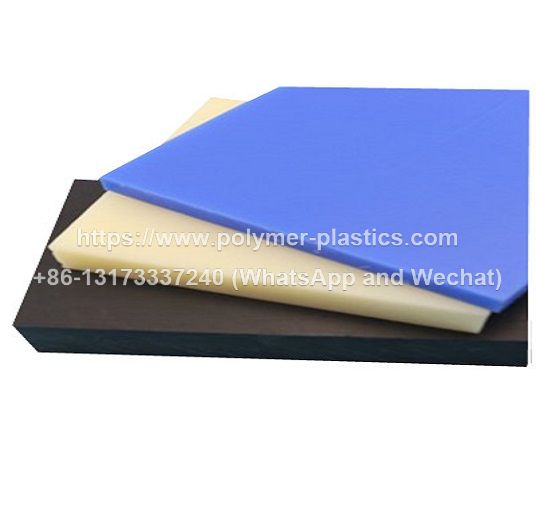

Color

Black

Natural (White)

Yellow (Oil-filled)


Applications

•Pistons and valves
•Manifolds
•Electrical components
•Wear pads and wear strips
•Sheaves and pulleys
•Feed and timing screws
•Rollers and wheels
•Food product forming dies
•Gears, sprockets, and star wheels
•Scraper blades
•Bushings and bearings
•Pump components


Machined components

Engineering parts

Bearings

Valve flange

Bushing

Gears

Pulleys

Sprin

Release blocks



Data Sheet

Attribute    Value

Form    Full

Colour    Natural

Length    500mm

Width    300mm

Thickness    40mm

Material    PA

Laminated    No

Density    1.14g/cm³

Tensile Strength    60 (Wet) MPa, 80 (Dry) MPa

Flammability Rating    UL HB

Water Absorption    8.5%

Maximum Operating Temperature    +100°C

Elongation    150%



Property

Cast

Extruded

MD

Water Absorption @24 Hours

0.6 - 0.9%

1.2%

0.5%

Izod Impact, Notched

0.7-0.9

1.2

--

Tensile Strength (ksi)

435ksi

410ksi

450ksi

Flexural Strength (ksi)

15.5 - 17.5ksi

15ksi

--

Flexural Modulus (ksi)

460ksi

450ksi

330ksi

Elongation at Break

20-55%

50%

35%

Compressive Strength (ksi)

13-16ksi

12.5ksi

--

Hardness, Rockwell

115-125

115

--

Maximum Continuous service Temp

230F

210F

220-250F

Deflection Temp

200-400F

200F

--

Melting Point

450F

500F

--

Coefficient of Friction

0.22

0.28

0.3-0.4

*Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
