Nylon 6/6 Plastic Sheets Cast Nylon Type 6 Plastic :

Nylon 66 is also known as Polyamide 66 or PA 66 and is a semi-crystalline engineering plastic. This plastic is both hard and rigid with good abrasive and wear resistance along with low frictional properties. It also has good thermal dimensional stability which is the degree to which a material maintains its original dimensions when subjected to changes in temperature and humidity. This Nylon 66 plastic also features good slide and wear properties, components made from this solid plastic sheet slide very easily and don’t stick or lock up. This is an essential quality when this material is used in delicate or fine instruments where smooth operation is essential as well as in gears and bearings


Nylon 6/6 Plastic Sheets Cast Nylon Type 6 Plastic

Description

What is Nylon 66?


Nylon 66 is also known as Polyamide 66 or PA 66 and is a semi-crystalline engineering plastic. This plastic is both hard and rigid with good abrasive and wear resistance along with low frictional properties. It also has good thermal dimensional stability which is the degree to which a material maintains its original dimensions when subjected to changes in temperature and humidity. This Nylon 66 plastic also features good slide and wear properties, components made from this solid plastic sheet slide very easily and don’t stick or lock up. This is an essential quality when this material is used in delicate or fine instruments where smooth operation is essential as well as in gears and bearings


Nylon Sheet, commonly known as Polyamide Sheet or PA Sheet (PA), are semi-crystalline polymers with very good mechanical properties, extreme toughness abd excellent sliding and wera properties. Nylon Sheet is tough and highly load resistant. Due to the pressureless manufacturing process Nylon Sheet is almost stress free.


Commonly referred to as:

Nylon

Nylon 6

Tecast

Tecamid

Polyamide Sheet

PA Sheet

Ertalon

Lurbon

Nylatron

GHER

Zellamid 202


Cast nylon is one of the oldest and most widely used engineered mechanical plastics. Its combination of toughness, dimensional stability, wear resistance, availability, and versatility make it a natural choice for informed engineers looking to improve their project. Cast nylon has served well in replacing many metals and offers a design choice when noise reduction and long life are important.

Cast nylon is a tough, stable engineering thermoplastic with a high modulus of elasticity, high strength, good rigidity, dimensional stability, resistance to moisture, solvents and other chemicals. It performs significantly better than copolymers in toughness at extreme temperatures, fatigue endurance, and elongation at yield. Common applications include precision gears, bearings with close tolerances, electrical engineering insulators, snap fit assemblies, and parts operating in a hot water environment.


Features and Benefits


• Good rigidity and hardness
• Good slide and low frictional properties
• Good abrasion and impact resistance
• Outstanding wear resistance
• Resistant to many chemicals, oils, greases and fuels
• Very good temperature resistance
• Good thermal dimensional stability
• Electrically insulating
• Weldable and bondable


Low co-efficient of friction

High modulus of elasticity

High strength

High rigidity and dimensional stability

Resistant to chemicals and moisture

FDA Compliant


Applications


Nylon 66 with its unique qualities, is used in a wide range of different industries. These industries include electronics, automotive, food, textiiles, agricultural and building, packaging and paper and aircraft and aerospace. Nylon 66 with its outstanding wear resistance and good slide and wear properties is ideal for use in a wide range of applications including the following;


• Gear wheels and Cam discs
• Friction strips and bearings
• Bushes and spindle nuts
• Piston guides
• Castors
• Impact plates and damping plates
• Conveyor screws
• Rope pulleys
• Plug parts

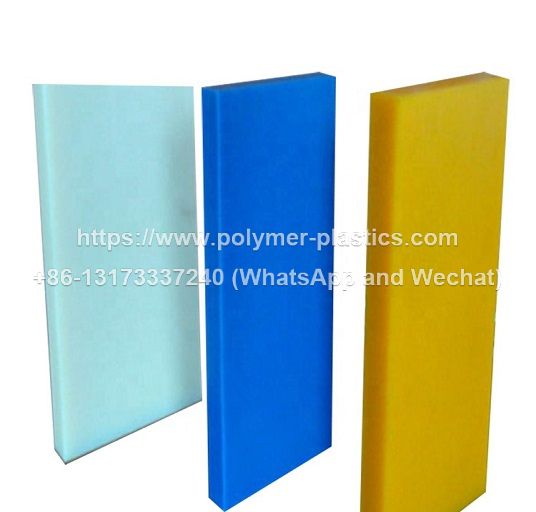

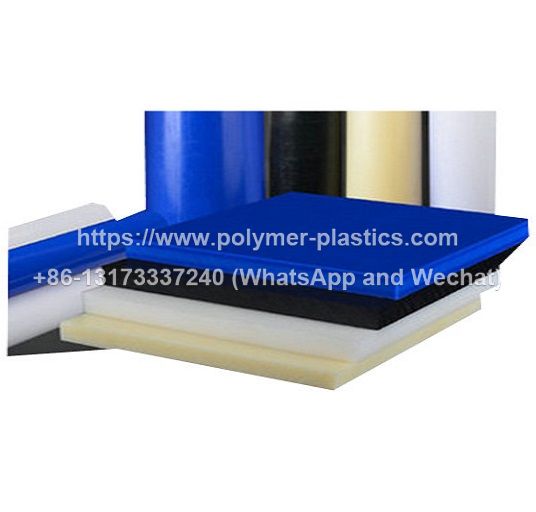

Size

Nylon 6 Sheet: 10mm to 100mm thick

premium grade Nylon 6 in full sheets and cut to size pieces in the following thicknesses:

10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 100mm


2440x1220mm, 8feet x 4feet, 96inch x 48inch


Color

Black

Natural (White)

Yellow (Oil-filled)


Applications

•Pistons and valves
•Manifolds
•Electrical components
•Wear pads and wear strips
•Sheaves and pulleys
•Feed and timing screws
•Rollers and wheels
•Food product forming dies
•Gears, sprockets, and star wheels
•Scraper blades
•Bushings and bearings
•Pump components


Machined components

Engineering parts

Bearings

Valve flange

Bushing

Gears

Pulleys

Sprin

Release blocks


Data Sheet

Attribute    Value

Form    Full

Colour    Natural

Length    500mm

Width    300mm

Thickness    40mm

Material    PA

Laminated    No

Density    1.14g/cm³

Tensile Strength    60 (Wet) MPa, 80 (Dry) MPa

Flammability Rating    UL HB

Water Absorption    8.5%

Maximum Operating Temperature    +100°C

Elongation    150%



Property

Cast

Extruded

MD

Water Absorption @24 Hours

0.6 - 0.9%

1.2%

0.5%

Izod Impact, Notched

0.7-0.9

1.2

--

Tensile Strength (ksi)

435ksi

410ksi

450ksi

Flexural Strength (ksi)

15.5 - 17.5ksi

15ksi

--

Flexural Modulus (ksi)

460ksi

450ksi

330ksi

Elongation at Break

20-55%

50%

35%

Compressive Strength (ksi)

13-16ksi

12.5ksi

--

Hardness, Rockwell

115-125

115

--

Maximum Continuous service Temp

230F

210F

220-250F

Deflection Temp

200-400F

200F

--

Melting Point

450F

500F

--

Coefficient of Friction

0.22

0.28

0.3-0.4

*Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
