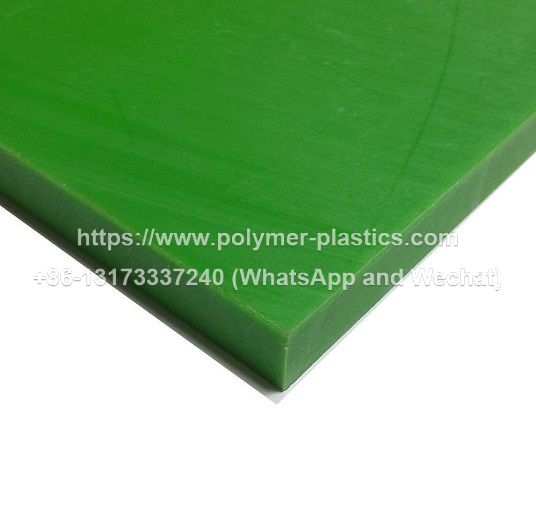

green uhmwpe chute liner

coal chute liner

uhmwpe coal chute liner

uhmwpe chute lining solution

Inquire Now Next Product

Description

UHMWPE liner

We provide UHMWPE liner in various shapes and sizes. Also, they are available in different color such as Black, Grey, Natural, etc. However, we offer in UHMWPE liner customized designs with distinct specifications in colors and dimensions.

UHMWPE lining sheets assist to reduce typical flow problems of bulk solids in bins, hoppers, chutes, truck beds and other applications. However, every application, brings with it unique challenges and places special demands on the plastic lining material.

Excellent advantages of UHMWPE liner

Low dynamic friction coefficient

No incrustations of bulk material

Extreme wear resistance

No bridging caused in hoppers

Chemical and corrosion resistance

Enhanced protection of plant and machinery against wear

Light weight

Faster bulk material flow

High anti-impact strength (up to 170KJ/m m2)

Low cost

Technical Data of UHMWPE liner

	Unit	ASTM test	HDPE	UHMWPE
Tensile strength	Psi	D-638	4000	3100
Flexural modulus	psi	D-790	200000	110000
Notched impact	Ft-lbs/in of notch	D-256	1.3	18
Heat deflection temperature	℉	D-648	172	—
Maximum continuous service temperature in air	℉		—	180
Water absorption	%	D-570	0.1	slight
Coefficient of liner thermal expansion	in/in/℉ 10-5	D-696	7.0	11.1

Size

length(mm)	width(mm)	thickness(mm)
2000	1000	5-300
2000	2000	5-300
2440	1220	5-200
3000	1500	5-200
3050	1220	5-200
3100	1050	5-200
3100	1500	5-200

many other sizes also available

general thickness will be 10mm and 12mm

Color

green

white, black

Applications

As silo liner, chute liner, bunker liner for the bulk material like coal, lime, cement, mineral power, salt, grain
