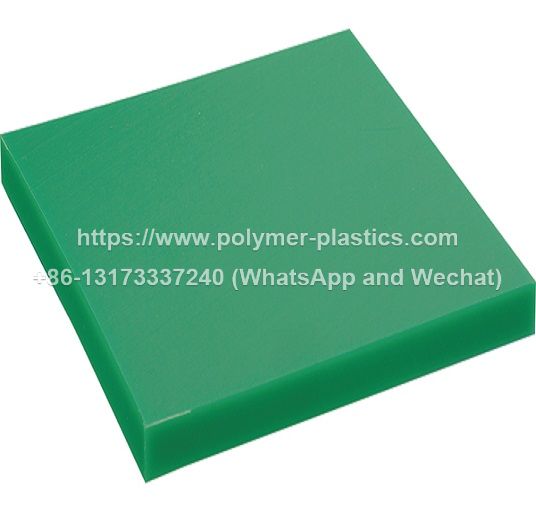

uhmwpe sheet

UHMWPE is used in a variety of industries that handle bulk materials from Mining up to the final processing or use of the product.

Inquire Now Next Product

Description

Xinxing Low Friction Liners

Xinxing UHMWPE is a strong wear resistant material with a low friction co-efficient making it an ideal solution for lining chutes, hoppers, bunkers and silos. Professionally installed UHMWPE can be relatively maintenance free, extending the working life of material handling plants.

Various installation methods offer a range of cost effective solutions from simple bolting to rubber backed stick in type liners, space frame construction and even welded UHMWPE drop in liners for fabricated chutes.

With a very low friction co-efficient and zero water absorption, UHMWPE linings are widely used to eliminate caking, bridging and hanging up of a variety of bulk materials in application extending through steel and cement production, mining and power generation. In new applications the use of UHMWPE liners facilitates shallower chute and hoper angles providing greater design freedom, whilst in existing installations, the simulation of steeper angles through a low friction co-efficient is often the solution to plant blockage problems.

UNIQUE FEATURES

BENEFITS

Abrasion Resistance

· Outwears steel 6:1

Chemical Resistance

· Resistant to most industrial acids, alkalis and solvents

· Will not rust

Nil moisture absorption

· Non Absorbent

Low Coefficient of Friction

· Handles the worst of bulk materials, assists in smooth, predictable flow

Lightweight

· Weight 1/8th that of steel

Easily Machined

· Cut and drill with basic power tools

· Formable

Fastener Selection

· Wide range available for different conditionss

· Weldable

· Space fame construction offers large cost savings

High Shock Strength

· Rated non-break, even at -269°C

MINING

· Off-road truck bed liners

· Shovel liners

· Hopper liners

· Chute liners

· Scrapers

· Dragline bucket liners

· Stacker/ Reclaimer bucket liners

· Front-end loader buckets

TRANSPORTATION

· Ship holds

· Railcars

· On-road truck bed liners

STORAGE AND HANDLING

· Silos, bins, bunkers

· Reclaim hoppers

· Truck dump hoppers

· Rail dump hoppers

· Vibratory feeder pans

· Receiving Hoppers

· Dozer blade liners

· Slider beds

· Skirting

· Belt scrapers

PROCESSING

· Day bins

· Surge bins

· Batch hoppers

· Storage silos and bins

· Hoppers

· Chutes

· Feeders

· Screw conveyors

BULK MATERIALS HANDLED

· Coal

· Iron ore

· Copper concentrate

· Clay

· Limestone

· Soda Ash

· Chemical Powders

· Nickel Ore

· Synthetic Gypsum

· Peat

· Kaolin Clay

· Potash

· Salt

· Silica Sand

· Soap Detergent

· Wood Chips

· Zinc Concentrate

· Phosphate

· Dust

· Talc

Size

length(mm)	width(mm)	thickness(mm)
2000	1000	5-300
2000	2000	5-300
2440	1220	5-200
3000	1500	5-200
3050	1220	5-200
3100	1050	5-200
3100	1500	5-200

generally thickness will be 10mm, 12mm

Color

white and green

Applications

Uhmw sheet can be widely used in mining, coal preparation, metallurgical industry, thermal power plant, shipbuilding and other departments to transport liquid, solid, solid-liquid mixture funnel, drain, Anti-corrosion application of flaps, scraper conveyor slides, jig sieve plates, flotation machine liners, ship cargo liners, large sliders, mine cars, silo chute liner, dump truck compartment linings, etc.
