black color CNC machined uhmwpe outrigger pad :

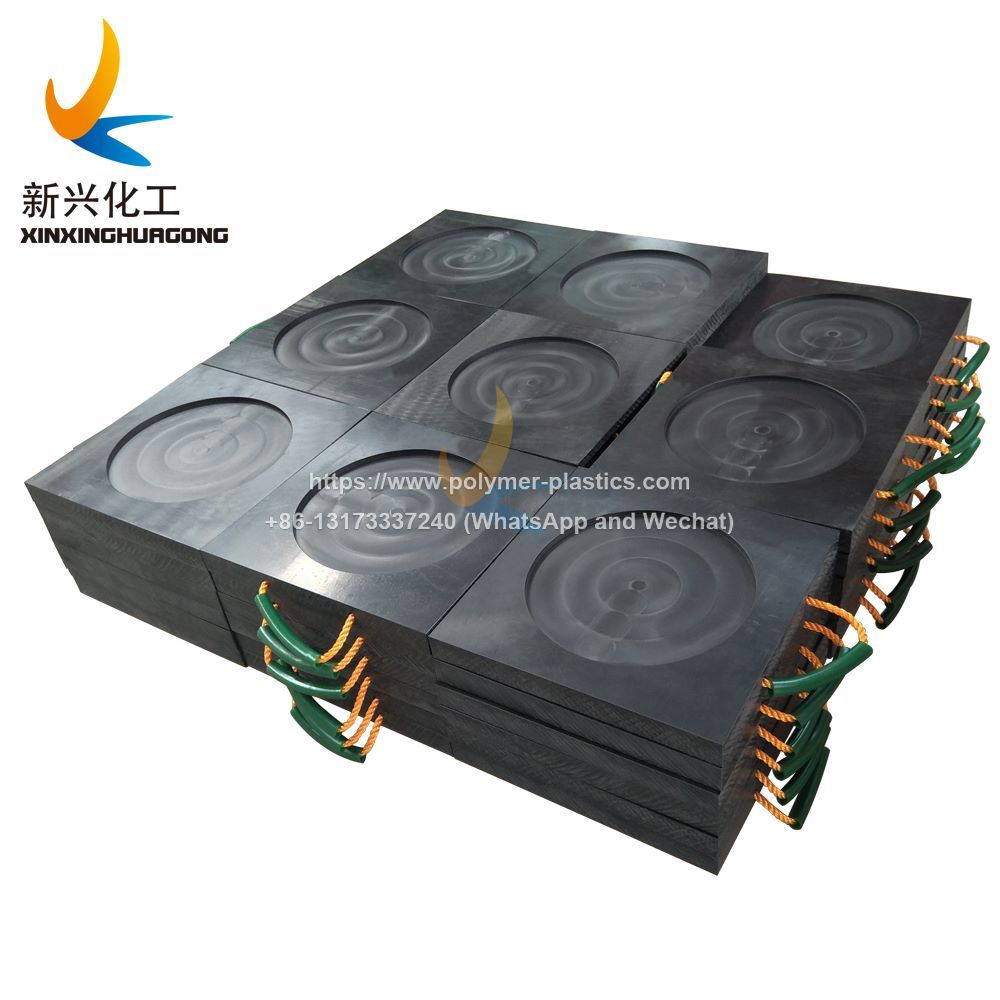

black color CNC machined uhmwpe outrigger pad

CNC machined uhmwpe outrigger pad

CNC machined sunken circle outrigger pad

Inquire Now Next Product

Description

Crane outrigger pads

To permit maximum lifting capacity and improve safety, cribbing plates or outrigger pads are used to provide support to terrain and mobile crane outriggers. When cribbing plates are used, the high pressures generated by cranes are distributed over a larger area, reducing the risk of a failure that could lead to a crane accident.

Crane outrigger pads Advantage :

--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
--Non-Conductive
--Non-Toxic and smell
-- Are flexible, so they will bend but not break under extreme loads.
--Light weight

Crane outrigger pads Benefits:
--Work in sub zero temperatures
--Easy to mount, replace
--Reduced downtime.
--Lower maintenance costs.
--Storage-Friendly
--Durable & Long Lasting
--Cost Efficient compared to Steel or Aluminum
--Safer to use in the field compared to other wood based pads.

Crane outrigger pads Application:

Our Outrigger Pads put under the support-leg of Truck Crane,
Crawler Crane,
Rough Crane, Boom Pump,
Concrete Pump and so on.

Size

Crane outrigger pads Size:

Dimensions(mm) Square	Weight(Kg)	Vertical Jack Capacity(ton)	Crane Capacity (ton)
400X400X40	6.3	10	12
500X500X40	9.9	12	15
600X600X40	14.2	20	25
700X700X40	19.4	22	30
800X800X40	25.3	25	30
1000X1000X40	39.2	30	35
400X400X50	8	11	15
500X500X50	12.2	15	18
600X600X50	18	23	30
800X800X50	31.3	30	35
1000X1000X50	48	40	50
400X400X60	9.5	12	15
500X500X60	14.5	20	25
600X600X60	21.2	25	30
800X800X60	38.4	35	45
1000X1000X60	58.5	50	65
1200X1200X60	85	70	80
800X800X70	44	40	50
1000X1000X70	68.5	70	80
800X800X80	50.4	50	60
1000X1000X80	78	80	100
1200X1200X80	113	100	120
1000X1000X100	98	110	140
1200X1200X100	141	140	160

400×400 mm thickness 50 = 15,7 x 15,7 inch x 2
500×500 mm thickness 50 = 19,7 x 19,7 inch x 2
600×600 mm thickness 60 = 23,6 x 23,6 inch x 2,4

Color

black

Applications

All terrain cranes

Telescopic crawler cranes

Truck mounted cranes

Rought terrain cranes

Lattic boom crawler cranes

Compact cranes

Hydraulic trailers

Grove hydrostatic pump

BOOM LIFT

Rough Terrain

All Terrain

Crawler Cranes
