uhmwpe stabilizer pad

Description

Extreme Strength & Rigidity

UHMWPE, full name ultra high molecular weight polyethylene, it is a odorless, tasteless, and nontoxic material.

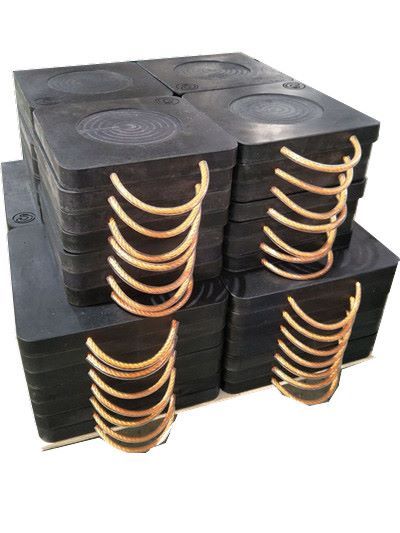

Crane stabilizer pad is made of UHMWPE, it is tough, Longlasting and Durable. It is a high load capacity outrigger crane pad with a large vertical load bearing capacity.

UHMWPE crane stabilizer pad is used to support vehicles and cranes without warping, splintering , bending or any other damage.


Plastic Crane Outrigger Pads Features:

1. Ultra-high molecular weight polyethylene sheet has extremely high impact strength, which is 10 times larger than nylon and polypropylene (PP);
2. The wear resistance of ultra-high molecular weight polyethylene sheet is very excellent. The sand slurry wear test shows that it is several times more wear-resistant than other metals like carbon steel and copper, and 4-5 times more wear-resistant than nylon and PTFE, ranking first among existing plastics.
3. The friction coefficient of ultra-high molecular weight polyethylene liner is very low. Its dynamic friction coefficient is 0.07 ~ 0.10.
4. High polymer polyethylene sheet can absorb shock and prevent noise;
5. Plastic crane outrigger pads is resistant to chemical corrosion, and can shield atomic radiation. In a certain range of temperature, concentration of many corrosive media (acid, alkali, salt) and organic solvents and other various corrosive media have no alternative to it;
6. Ultra-high molecular polyethylene crane pads is not easy to adhere to foreign matters, and has excellent anti-adhesion properties when sliding;
7. Tasteless, non-toxic, odorless, pollution-free, non-corrosive crane pad colors, which are allowed by the food and drug administration (FDA) and the USDA to be used for direct contact with food and drugs, thus applicable to industries with higher requirements on hygiene conditions such as food and medicine. Can be recycled in the cycle and other plastic compared with good thermal stability and no water imbibition plastic plate, crane products in damp environment, also won’t because of water absorption and make the size change, also does not affect the product precision and wear resistance and mechanical properties, and raw materials do not need to be dry prior to forming processing.
8, the working temperature range from 265 ℃ to + 265 ℃, low temperature to – 195 ℃ can still maintain good toughness and strength, not brittle.



Size

Standard of Square Outrigger Pads

DimensionLoad CapacityWeight
400*400*40 mm
12 t
6.3 Kg
500*500*40 mm
15 t
9.9 Kg
500*500*50 mm
18 t
12 Kg
600*600*40 mm
20 t
14.2 Kg
600*600x50 mm
25 t
18 Kg
600*600*60 mm
30 t
21.2 Kg
800*800*40 mm
35 t
25.3 Kg
800*800*50 mm
40 t
31.3 Kg
800*800*60 mm
45 t
38.4 Kg
1000*1000*80 mm
100 t
78 Kg
1200*1200*80 mm
120 t
115 Kg
1500*1500*100 mm
200 t
210 Kg



Standard Size of Round Outrigger Pads

DimensionLoad CapacityWeight
800*50mm
35 t
25 Kg
800*60 mm
40 t
30 Kg
900*50 mm
45 t
30 Kg
900*60 mm
50 t
35 Kg
1000x50 mm
50 t
29.25 Kg
1000*60 mm
60 t
40 Kg
1000*70 mm
75 t
50.75 Kg
1000*80 mm
80 t
61.5 Kg
1200*60 mm
90 t
66.4 Kg
1200*70 mm
110 t
77.45 Kg
1200*80 mm
120 t
88.5 Kg
1500*80 mm
160 t
144 Kg


Color

many  colors are available


black, white, yellow, blue, green, red, grey, orange


yellow and black are our main exported color

Applications

All terrain cranes

Telescopic crawler cranes

Truck mounted cranes

Rought terrain cranes

Lattic boom crawler cranes

Compact cranes

Hydraulic trailers

Grove hydrostatic pump

BOOM LIFT

Rough Terrain

All Terrain

Crawler Cranes
